AP反製

分類與反製配置舉例

1. 組網需求

如圖1-3所示，AP通過交換機與AC相連，AP1和AP2為Client提供無線服務，SSID為“abc”，在Sensor上開啟WIPS功能，配置分類策略，將非法客戶端的MAC地址（000f-1c35-12a5）添加到靜態禁用列表中，將SSID“abc”添加到靜態信任列表中，要求對檢測到的潛在外部AP和未授權客戶端進行反製。

2. 組網圖

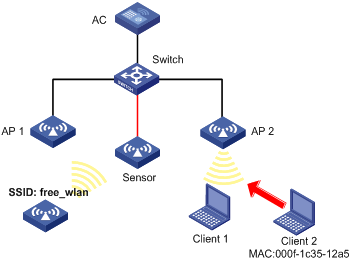

圖1-3 WIPS分類與反製組網圖

3. 配置步驟

在AC上完成無線服務的相關配置，具體配置步驟可參見“WLAN配置指導”中的“WLAN接入”，此處不再重複。

# 配置虛擬安全域vsd1。

<AC> system-view

[AC] wips

[AC-wips] virtual-security-domain vsd1

[AP-wips-vsd-vsd1] quit

[AC-wips] quit

# 創建AP名稱為Sensor，開啟WIPS功能。

[AC] wlan ap Sensor model WA4320i-ACN

[AC-wlan-ap-Sensor] serial-id 210235A1GQB139000435

[AC-wlan-ap-Sensor] radio 1

[AC-wlan-ap-Sensor-radio-1] radio enable

[AC-wlan-ap-Sensor-radio-1] wips enable

[AC-wlan-ap-Sensor-radio-1] quit

# 配置Sensor加入虛擬安全域vsd1。

[AC-wlan-ap-Sensor] wips virtual-security-domain vsd1

[AC-wlan-ap-Sensor] quit

# 配置分類策略class1，將Client 2的MAC地址配置禁用MAC地址，並且將名為“abc”的SSID配置為信任SSID。

[AC] wips

[AC-wips] classification policy class1

[AC-wips-cls-class1] block mac-address 000f-1c35-12a5

[AC-wips-cls-class1] trust ssid abc

[AC-wips-cls-class1] quit

# 虛擬安全域vsd1應用分類策略class1。

[AC-wips] virtual-security-domain vsd1

[AC-wips-vsd-vsd1] apply classification policy class1

[AC-wips-vsd-vsd1] quit

# 配置反製策略protect，反製未授權客戶端和潛在外部AP。

[AC-wips] countermeasure policy protect

[AC-wips-cms-protect] countermeasure unauthorized-client

[AC-wips-cms-protect] countermeasure potential-external-ap

[AC-wips-cms-protect] quit

# 虛擬安全域vsd1應用反製策略protect。

[AC-wips] virtual-security-domain vsd1

[AC-wips-vsd-vsd1] apply countermeasure policy protect

[AC-wips-vsd-vsd1] quit

[AC-wips] quit

4. 驗證配置

(1)     通過display wips virtual-security-domain命令查看無線設備的分類結果。

[AC] display wips virtual-security-domain vsd1 device

Total 3 detected devices in virtual-security-domain vsd1

Class: Auth - authorization; Ext - extern; Mis - mistake;

       Unauth - unauthorized; Uncate - uncategorized;

       (A) - associate; (C) - config; (P) - potential

MAC address    Type   Class    Duration    Sensors Channel Status

00e0-fc00-5829 AP     Auth     00h 10m 24s 1       149     Active

000f-e228-2528 AP     Auth     00h 10m 04s 1       149     Active

000f-e223-1616 AP     Ext(P)   00h 10m 46s 1       149     Active

000f-1c35-12a5 Client Unauth   00h 10m 02s 1       149     Active

000f-e201-0102 Client Auth     00h 10m 02s 1       149     Active

在虛擬安全域vsd1，MAC地址為000f-e223-1616的AP被分類成潛在外部AP，MAC地址為000f-1c35-12a5的客戶端被分類為未授權的客戶端。

(2)     通過命令行display wips virtual-security-domain vsd1 countermeasure record命令查看反製過的設備記錄信息。

[AC] display wips virtual-security-domain vsd1 countermeasure record

Total 2 times countermeasure, current 2 countermeasure record in virtual-security-domain vsd1

Reason: Attack; Ass - associated; Black - blacklist;

        Class - classification; Manu - manual;

MAC address    Type   Reason   Countermeasure AP      Radio ID   Time

000f-e223-1616 AP     Class    Sensor                 1          2014-06-03/10:30:36

000f-1c35-12a5 Client Class    Sensor                 1          2014-06-03/09:13:26

在虛擬安全域vsd1，MAC地址為000f-1c35-12a5的未授權客戶端和MAC地址為000f-e223-1616的潛在外部AP被反製。

1.15.2  WIPS畸形報文檢測和泛洪攻擊檢測配置舉例

1. 組網需求

如圖1-4所示，AP通過交換機與AC相連，將兩台AP分別配置為Sensor，配置虛擬安全域VSD_1，並配置兩台Sensor屬於這個虛擬安全域，當檢測到攻擊者對無線網絡進行IE重複的畸形報文或Beacon幀泛洪攻擊時，AP向AC發送告警信息。

2. 組網圖

圖1-4 畸形報文檢測和泛洪攻擊檢測組網圖

3. 配置步驟

在AC上完成無線服務的相關配置，具體配置步驟可參見“WLAN配置指導”中的“WLAN接入”，此處不再重複。

# 創建AP名稱為sensor1，開啟WIPS功能。

<AC> system-view

[AC] wlan ap sensor1 model WA4320i-ACN

[AC-wlan-ap-sensor1] serial-id 210235A1GQB139000435

[AC-wlan-ap-sensor1] radio 1

[AC-wlan-ap-sensor1-radio-1] radio enable

[AC-wlan-ap-sensor1-radio-1] wips enable

[AC-wlan-ap-sensor1-radio-1] return

# 創建AP名稱為sensor2，開啟WIPS功能。

<AC> system-view

[AC] wlan ap sensor2 model WA4320i-ACN

[AC-wlan-ap-sensor2] serial-id 210235A1GQB139000436

[AC-wlan-ap-sensor2] radio 1

[AC-wlan-ap-sensor2-radio-1] radio enable

[AC-wlan-ap-sensor2-radio-1] wips enable

[AC-wlan-ap-sensor2-radio-1] quit

[AC-wlan-ap-sensor2] quit

# 配置虛擬安全域VSD_1。

[AC] wips

[AC-wips] virtual-security-domain VSD_1

[AP-wips-vsd-VSD_1] quit

# 創建攻擊檢測策略，當檢測到IE重複的畸形報文和Beacon幀泛洪攻擊時，向AC發送日誌信息或告警信息。檢測IE重複的畸形報文的靜默時間為50秒，檢測Beacon幀的統計周期為100秒，觸發閾值為200，靜默時間為50秒。

[AC-wips] detect policy dtc1

[AC-wips-dtc-dtc1] malformed duplicated-ie quiet 50

[AC-wips-dtc-dtc1] flood beacon interval 100 quiet 50 threshold 200

[AC-wips-dtc-dtc1] quit

# 在虛擬安全域VSD_1上應用攻擊檢測策略。

[AC-wips] virtual-security-domain VSD_1

[AC-wips-vsd-VSD_1] apply detect policy dtc1

[AC-wips-vsd-VSD_1] quit

[AC-wips] quit

# 配置sensor1加入虛擬安全域VSD_1。

[AC] wlan ap sensor1

[AC-wlan-ap-sensor1] wips virtual-security-domain VSD_1

[AC-wlan-ap-sensor1] quit

# 配置sensor2加入虛擬安全域VSD_1。

[AC] wlan ap sensor2

[AC-wlan-ap-sensor2] wips virtual-security-domain VSD_1

[AC-wlan-ap-sensor2] return

4.  驗證結果

(1)     當網絡中沒有攻擊者時，在AC上通過命令行display wips statistics receive命令查看收到報文的統計信息，畸形報文和泛洪報文的統計個數為0。

<AC> display wips statistics receive

Information from sensor 1

Information about attack statistics:

Detected association-request flood messages: 0

Detected authentication flood messages: 0

Detected beacon flood messages: 0

Detected block-ack flood messages: 0

Detected cts flood messages: 0

Detected deauthentication flood messages: 0

Detected disassociation flood messages: 0

Detected eapol-start flood messages: 0

Detected null-data flood messages: 0

Detected probe-request flood messages: 0

Detected reassociation-request flood messages: 0

Detected rts flood messages: 0

Detected duplicated-ie messages: 0

Detected fata-jack messages: 0

Detected illegal-ibss-ess messages: 0

Detected invalid-address-combination messages: 0

Detected invalid-assoc-req messages: 0

Detected invalid-auth messages: 0

Detected invalid-deauth-code messages: 0

Detected invalid-disassoc-code messages: 0

Detected invalid-ht-ie messages: 0

Detected invalid-ie-length messages: 0

Detected invalid-pkt-length messages: 0

Detected large-duration messages: 0

Detected null-probe-resp messages: 0

Detected overflow-eapol-key messages: 0

Detected overflow-ssid messages: 0

Detected redundant-ie messages: 0

Detected AP spoof AP messages: 0

Detected AP spoof client messages: 0

Detected AP spoof ad-hoc messages: 0

Detected ad-hoc spoof AP messages: 0

Detected client spoof AP messages: 0

Detected weak IV messages: 0

Detected excess AP messages: 0

Detected excess client messages: 0

Detected sig rule messages: 0

Information from sensor 2

Information about attack statistics:

Detected association-request flood messages: 0

Detected authentication flood messages: 0

Detected beacon flood messages: 0

Detected block-ack flood messages: 0

Detected cts flood messages: 0

Detected deauthentication flood messages: 0

Detected disassociation flood messages: 0

Detected eapol-start flood messages: 0

Detected null-data flood messages: 0

Detected probe-request flood messages: 0

Detected reassociation-request flood messages: 0

Detected rts flood messages: 0

Detected duplicated-ie messages: 0

Detected fata-jack messages: 0

Detected illegal-ibss-ess messages: 0

Detected invalid-address-combination messages: 0

Detected invalid-assoc-req messages: 0

Detected invalid-auth messages: 0

Detected invalid-deauth-code messages: 0

Detected invalid-disassoc-code messages: 0

Detected invalid-ht-ie messages: 0

Detected invalid-ie-length messages: 0

Detected invalid-pkt-length messages: 0

Detected large-duration messages: 0

Detected null-probe-resp messages: 0

Detected overflow-eapol-key messages: 0

Detected overflow-ssid messages: 0

Detected redundant-ie messages: 0

Detected AP spoof AP messages: 0

Detected AP spoof client messages: 0

Detected AP spoof ad-hoc messages: 0

Detected ad-hoc spoof AP messages: 0

Detected client spoof AP messages: 0

Detected weak IV messages: 0

Detected excess AP messages: 0

Detected excess client messages: 0

Detected sig rule messages: 0

(2)     當檢測到IE重複的畸形報文和Beacon幀泛洪攻擊時，在AC上通過命令行display wips statistics receive查看收到報文的統計信息，IE重複的畸形報文的統計個數為28和Beacon幀泛洪攻擊的統計個數為18。

<AC> display wips statistics receive

Information from sensor 1

Information about attack statistics:

Detected association-request flood messages: 0

Detected authentication flood messages: 0

Detected beacon flood messages: 18

Detected block-ack flood messages: 0

Detected cts flood messages: 0

Detected deauthentication flood messages: 0

Detected disassociation flood messages: 0

Detected eapol-start flood messages: 0

Detected null-data flood messages: 0

Detected probe-request flood messages: 0

Detected reassociation-request flood messages: 0

Detected rts flood messages: 0

Detected duplicated-ie messages: 0

Detected fata-jack messages: 0

Detected illegal-ibss-ess messages: 0

Detected invalid-address-combination messages: 0

Detected invalid-assoc-req messages: 0

Detected invalid-auth messages: 0

Detected invalid-deauth-code messages: 0

Detected invalid-disassoc-code messages: 0

Detected invalid-ht-ie messages: 0

Detected invalid-ie-length messages: 0

Detected invalid-pkt-length messages: 0

Detected large-duration messages: 0

Detected null-probe-resp messages: 0

Detected overflow-eapol-key messages: 0

Detected overflow-ssid messages: 0

Detected redundant-ie messages: 0

Detected AP spoof AP messages: 0

Detected AP spoof client messages: 0

Detected AP spoof ad-hoc messages: 0

Detected ad-hoc spoof AP messages: 0

Detected client spoof AP messages: 0

Detected weak IV messages: 0

Detected excess AP messages: 0

Detected excess client messages: 0

Detected sig rule messages: 0

Information from sensor 2

Information about attack statistics:

Detected association-request flood messages: 0

Detected authentication flood messages: 0

Detected beacon flood messages: 0

Detected block-ack flood messages: 0

Detected cts flood messages: 0

Detected deauthentication flood messages: 0

Detected disassociation flood messages: 0

Detected eapol-start flood messages: 0

Detected null-data flood messages: 0

Detected probe-request flood messages: 0

Detected reassociation-request flood messages: 0

Detected rts flood messages: 0

Detected duplicated-ie messages: 28

Detected fata-jack messages: 0

Detected illegal-ibss-ess messages: 0

Detected invalid-address-combination messages: 0

Detected invalid-assoc-req messages: 0

Detected invalid-auth messages: 0

Detected invalid-deauth-code messages: 0

Detected invalid-disassoc-code messages: 0

Detected invalid-ht-ie messages: 0

Detected invalid-ie-length messages: 0

Detected invalid-pkt-length messages: 0

Detected large-duration messages: 0

Detected null-probe-resp messages: 0

Detected overflow-eapol-key messages: 0

Detected overflow-ssid messages: 0

Detected redundant-ie messages: 0

Detected AP spoof AP messages: 0

Detected AP spoof client messages: 0

Detected AP spoof ad-hoc messages: 0

Detected ad-hoc spoof AP messages: 0

Detected client spoof AP messages: 0

Detected weak IV messages: 0

Detected excess AP messages: 0

Detected excess client messages: 0

Detected sig rule messages: 0
